FoxunHD 1x8 HDBaseT Splitter - Support 4K@60HZ 4:4:4

FoxunHDSKU: SX-SPH06

Product: Splitter
Price:
Sale price$862.50

Description

✔ COMPLETE HDBaseT 4K EXTENDER KIT – Includes 1 Transmitter & 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 simultaneously up to 4K @60Hz YUV 4:4:4 8-bit, HDR. The video is transmitted using lossless HDBaseT technology and HDR, giving you higher contrast and vivid colors for a more realistic viewing experience. Supports up to 7.1-channel, Dolby Digital, DTS-HD and Dolby TrueHD audio
✔ HDMI LOSSLESS TRANSMISSION RANGE – Up to 70m@1080p & 40m @4K/60Hz 4:4:4 & 4K HDR.
✔ AUTO VIDEO SCALING/DOWNSCALING – Supports mixed 4K & 1080p display outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling.
✔ ADVANCED FEATURES – 1 HDMI loopouts on Transmitter, 8 HDMI outputs on Receivers, Power over Cable (the Receiver is powered by the transmitter), Bi-directional IR (to control your source device at the location of your display or control your display from the location of your source device), RS-232 pass-through, low latency, and comprehensive EDID management (to allow you to experience audio and video in the highest settings possible based on the capabilities of your display)

Feature

1. Incorporates HD Base-T technology
2. Distributes 1 HDMI source to 8 HDMI Displays simultaneously with 1xlooping HDMI output
3. Input HDMI resolution max up to 4K@60hz YUV 4:4:4
4. HDBaseT output up to 4K@60hz YUV 4:2:0
5. HDMI output up to 4K@60hz YUV 4:4:4
6. Extends HDMI and IR up to 70 meters using one CAT5e (or better) cable
7. Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio )
8. Support RS232, EDID
9. Compliant HDCP 1.4 and 2.2
10. Support Cascade to 8 layers

User Manual

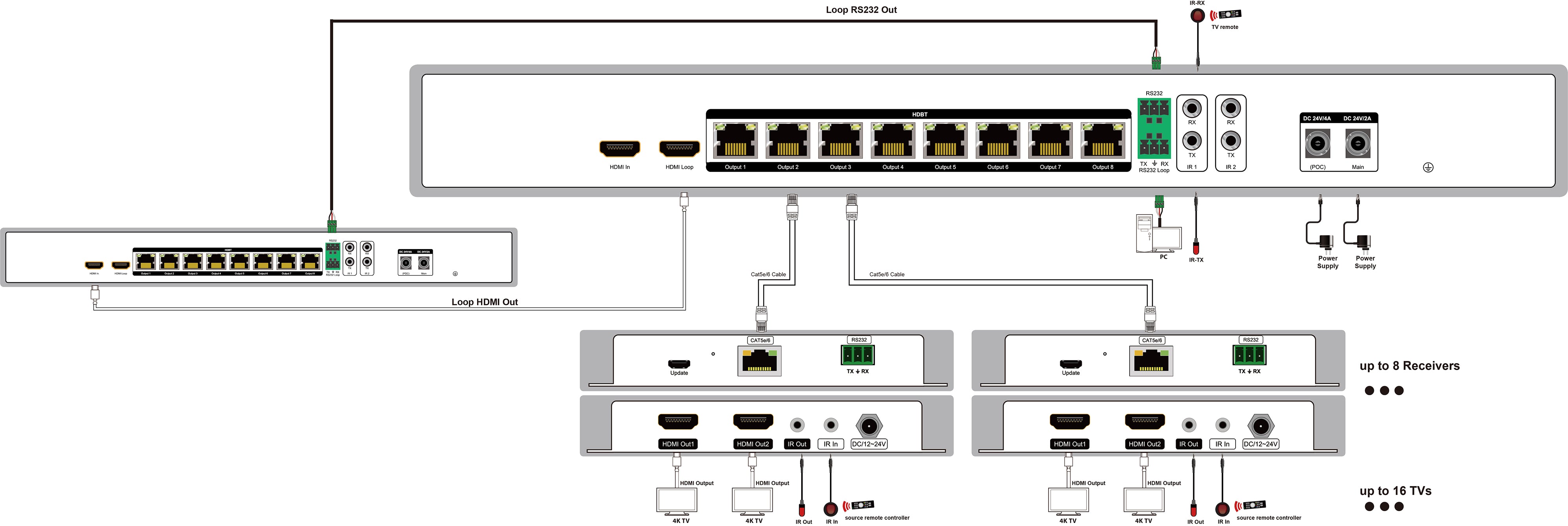

Diagram
