FoxunHD 4X4 HDMI Matrix - Support 4K@60HZ 4:4:4


Sale price$349.99

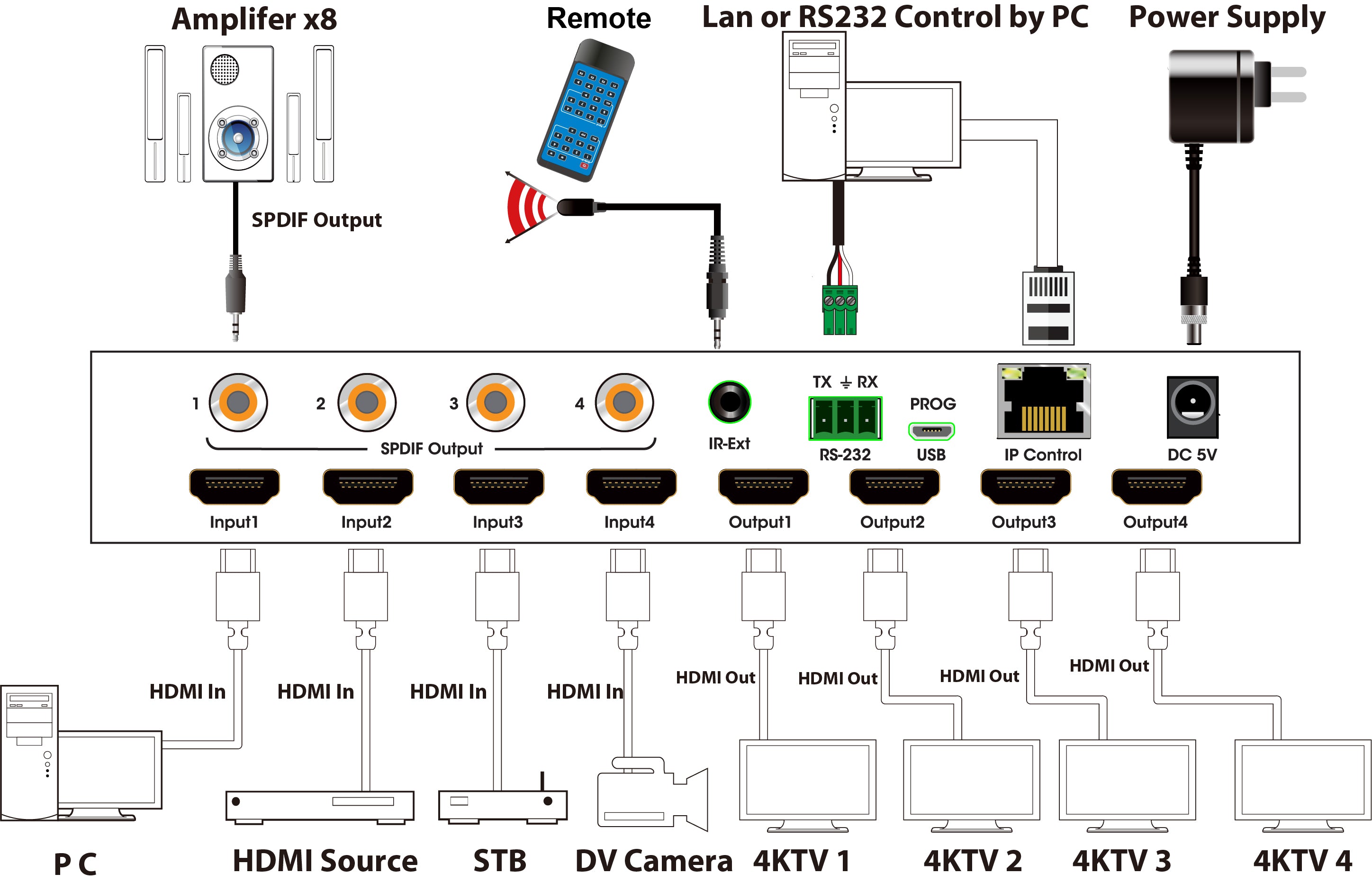

✔ 4x4 HDMI Matrix – Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
✔ HDMI 2.0 Standard – Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps. Supports audio extraction to S/PDIF Coaxial audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays.
✔ EDID Management – EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.
✔ Flexible Switching Options – 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Web GUI control. Select sources for each display in a way that is most convenient to you


1. Support 4K@60Hz YUV4:4:4
2. Support 3D
3. Bandwidth upto 18Gbps
4. HDCP2.2 input ,HDCP2.2 output
5. HDCP1.4 input, HDCP1.4 output
6. Support HDR10
7. 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
8. Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
9. Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
10. Support Dolby True HD and DTS-HD master audio

User Manual
