FoxunHD 4x1 HDBaseT Switch with mirrored HDBaseT Out- Support 4K@60HZ 4:4:4

FoxunHDSKU: SX-SWE01B

Price:
Sale price$246.00

Description

✔ 4-PORT HDMI SWITCH – Allows 4 HDMI source devices to be switched/routed to 1 display without signal degradation. HDMI 2.0, HDCP 2.2/1.4, up to 4K @60Hz YUV 4:4:4, HDR10, 18Gbps bandwidth, ARC, CEC (Input 1 only)
✔ MIRRED EXTENSION - Connected our model SX-EX53-RX to transmit the HDMI signal to be 70m @1080P, 40M @4K
✔ AUDIO EXTRACTION – Audio extraction to Toslink (5.1ch) and/or Analog (2ch).
✔ AUDIO MIXING – Mixes external AUX Analog audio (2ch) or Digital Toslink audio (5.1) to the outgoing HDMI signal. *Note: HDMI audio is no longer present in the audio mixing mode. The audio stream will come from either the AUX or Toslink input
✔ AUDIO FORMATS – Supports Dolby True HD & DTS-HD Master Audio (via HDMI); 5.1-channel (Digital Toslink); 2.0-channel (Analog RCA)

Feature

1. Incorporate HDBaseTtechnology
2. HDMI 2.0 version support 4K@60Hz YUV4:4:4, 18G,HDR10
3. Support 1x VGA, 1x Type-C, 2x HDMIinput
4. Support 1x HDMI and HDBT output simultaneously
5. Transmit up to 70m under 1080p@60Hz, 40m under4K@60Hz
6. HDCP 2.2/1.4compliant
7. Audio sampling rate upto 192KHz,support max1CH
8. Support Analog audio embedded, Micinput
9. Support Analog/SPDIF audio extraction, analog output support PCM2.0,SPDIF output support Dolby, DTS, max1CH
10. With wide-band Bi-Direction IR routed control(38~56KHz), IR extend to controldevice
11. Support RS232 passthrough
12. Support micro USB port for firmwareupgrade
13. Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC ToolControl
14. Support POC (receiver powered by HDBaseTswitch)
15. DC 24V/1A powersupply

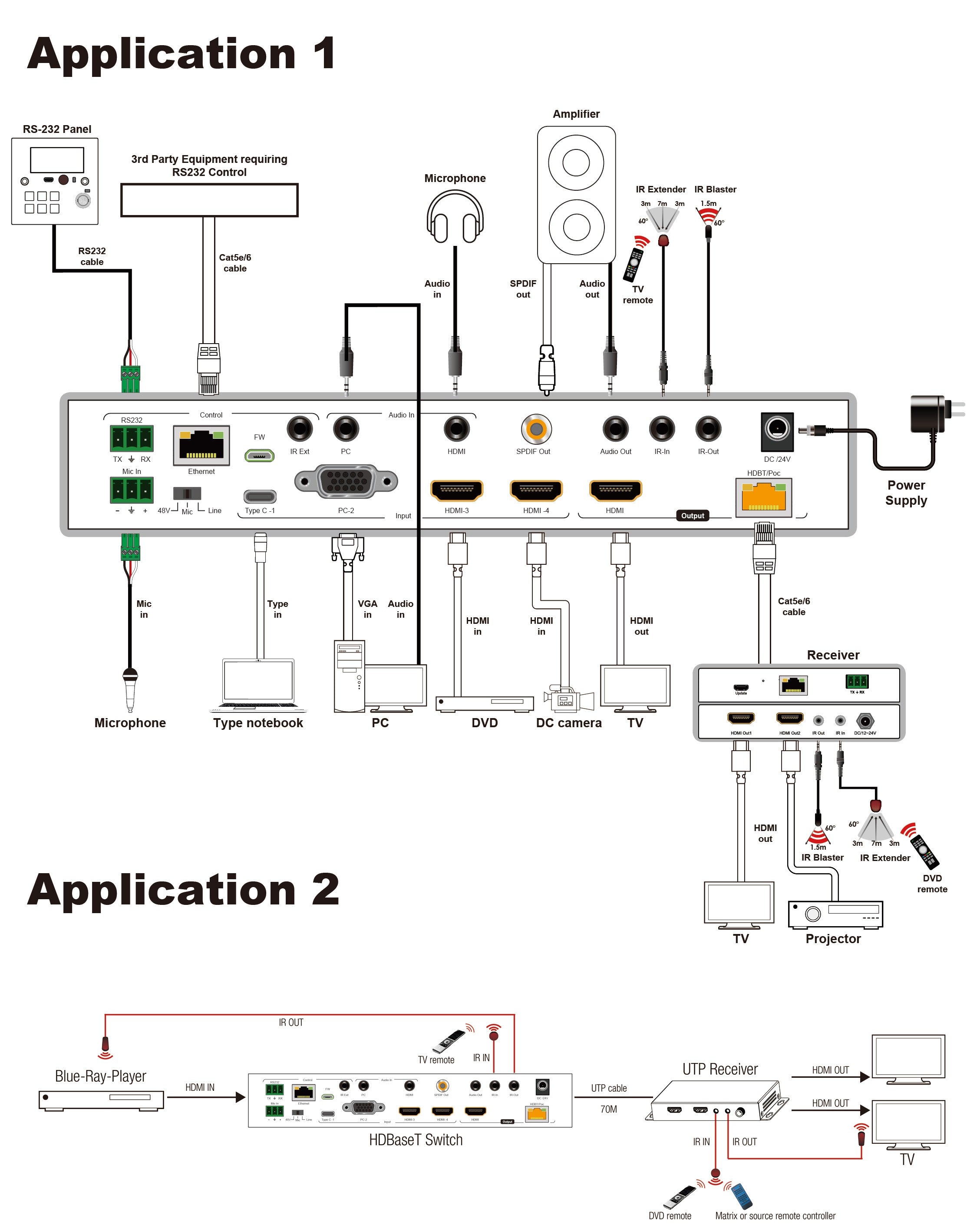

Diagram
